Steel Rail and Sleeper
The structure of railway track respectively is track bed, sleeper, and steel rail. Sleeper is used to support load from steel rail together with the weight itself and then pass on weight to the track bed. Steel rail is the basic bearing structure of railway track which is used to guide the locomotive vehicle and provides wheel rolling contact surface of least resistance at the same time. High quality steel rail must possess enough bearing capacity, bending strength, fracture toughness, stability and corrosion resistance performance.

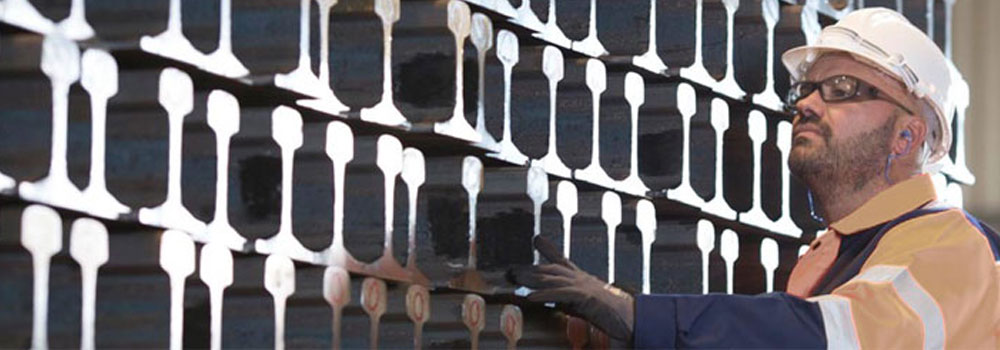

Steel Rail
AGICO Group is a comprehensive railway accessories supplier. Steel rail is one of our most popular rail products and we have had several deals this year. We can ensure that our railway products fulfil the demand of the international railway industry such as Chinese Standard Light Rail, Chinese Standard Heavy Rail, Chinese Standard Crane Rail, American Standard Steel Rail, BS Standard Steel Rail, UIC860 Standard Steel Rail, JIS E 1103/1101 Standard Steel Rail, South African Standard Steel Rail, Australian Standard Steel Rail, Indian (ISCR) Standard Steel Rail.
Heavy rail of GB2585-2007 Standard
Steel rail can be divided into two types: heavy rail and light rail. Heavy rail means which weight greater than 30kg per meter. It includes general heavy rail and crane rail. The general rail usually refers to trunk railway, special railway line, curve, tunnel rail. Rail section of heavy rail is greater than the light, and able to withstand greater force.
| Size | Dimension(mm) | Weight (kg/m) | Material | Length(m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Base Width | Height | Thickness | ||||
| P38KG | 68 | 114 | 134 | 13 | 38.733 | U71mn/50mn | 12.5-25 |
| P43KG | 70 | 114 | 140 | 14.5 | 44.653 | ||
| P50KG | 70 | 132 | 152 | 15.5 | 51.514 | ||
Crane Rail of YB/T5055-93 Standard
| Size | Dimension(mm) | Weight (kg/m) | Material | Length(m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Base Width | Height | Thickness | ||||
| QU 70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
| QU 80 | 80 | 130 | 130 | 32 | 63.69 | ||
| QU 100 | 100 | 150 | 150 | 38 | 88.96 | ||
| QU 120 | 120 | 170 | 170 | 44 | 118.1 | ||
Light Rail of GB11264-89 / YB222-63
| Standard: GB11264-89 | |||||||
|---|---|---|---|---|---|---|---|
| Size | Dimension(mm) | Weight (kg/m) | Material | Length(m) | |||
| Head Width | Foot Width | Height | Thickness | ||||
| GB6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235B/55Q | 6-12 |
| GB9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | ||
| GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | ||
| GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | ||
| GB22KG | 50.3 | 93.66 | 93.66 | 10.72 | 23.3 | ||
| GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | ||
| Standard: YB222-63 | |||||||
| 8KG | 25 | 54 | 65 | 7 | 8.42 | Q235B/55Q | 6-12 |
| 18KG | 40 | 80 | 90 | 10 | 18.06 | ||
| 24KG | 51 | 92 | 107 | 10.9 | 24.46 | ||
UIC860 Standard Steel Rail
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| UIC54 | 70 | 140 | 159 | 16 | 54.43 | 900A/1100 | 12-25 |
| UIC60 | 74.3 | 150 | 172 | 16.5 | 60.21 | ||
BS11-1985 Standard Steel Rail
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| 50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700/900A | 8-25 |
| 60A | 57.15 | 109.54 | 114.3 | 11.11 | 30.618 | ||
| 60R | 57.15 | 109.54 | 114.3 | 11.11 | 29.822 | ||
| 70A | 60.32 | 111.12 | 123.82 | 12.3 | 34.807 | ||
| 75A | 61.91 | 114.3 | 128.59 | 12.7 | 37.455 | ||
| 75R | 61.91 | 122.24 | 128.59 | 13.1 | 37.041 | ||
| 80A | 63.5 | 117.47 | 133.35 | 13.1 | 39.761 | ||
| 80R | 63.5 | 127 | 133.35 | 13.49 | 39.674 | ||
| 90A | 66.67 | 127 | 142.88 | 13.89 | 45.099 | ||
| 100A | 69.85 | 133.35 | 152.4 | 15.08 | 50.182 | ||
| 113A | 69.85 | 139.7 | 158.75 | 20 | 56.398 | ||
UIC860 Standard Steel Rail
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| UIC54 | 70 | 140 | 159 | 16 | 54.43 | 900A/1100 | 12-25 |
| UIC60 | 74.3 | 150 | 172 | 16.5 | 60.21 | ||
BS11-1985 Standard Steel Rail
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| 50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700/900A | 8-25 |
| 60A | 57.15 | 109.54 | 114.3 | 11.11 | 30.618 | ||
| 60R | 57.15 | 109.54 | 114.3 | 11.11 | 29.822 | ||
| 70A | 60.32 | 111.12 | 123.82 | 12.3 | 34.807 | ||
| 75A | 61.91 | 114.3 | 128.59 | 12.7 | 37.455 | ||
| 75R | 61.91 | 122.24 | 128.59 | 13.1 | 37.041 | ||
| 80A | 63.5 | 117.47 | 133.35 | 13.1 | 39.761 | ||
| 80R | 63.5 | 127 | 133.35 | 13.49 | 39.674 | ||
| 90A | 66.67 | 127 | 142.88 | 13.89 | 45.099 | ||
| 100A | 69.85 | 133.35 | 152.4 | 15.08 | 50.182 | ||
| 113A | 69.85 | 139.7 | 158.75 | 20 | 56.398 | ||
American Standard Steel Rail
| ASTM standard, AREMA standard | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | ||||
| Head Width | Foot Width | Height | Thickness | |||||
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 | |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | |||
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | |||
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | |||
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A /1100 | 12-25 | |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | |||
| ASCE 90 | 65.09 | 130.18 | 142.88 | 14.29 | 44.65 | |||
| ASCE 115 | 69.06 | 139.7 | 168.28 | 15.88 | 56.9 | |||
| ASCE 136 | 74.61 | 152.4 | 185.74 | 17.46 | 67.41 | |||
| ASCE 175 | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | |||
American Standard Steel Rail
| ASTM standard, AREMA standard | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | ||||
| Head Width | Foot Width | Height | Thickness | |||||
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 | |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | |||
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | |||
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | |||
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A /1100 | 12-25 | |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | |||
| ASCE 90 | 65.09 | 130.18 | 142.88 | 14.29 | 44.65 | |||
| ASCE 115 | 69.06 | 139.7 | 168.28 | 15.88 | 56.9 | |||
| ASCE 136 | 74.61 | 152.4 | 185.74 | 17.46 | 67.41 | |||
| ASCE 175 | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | |||
South African Standard Steel Rail
| ISCOR standard | |||||||
|---|---|---|---|---|---|---|---|
| Size | Dimension(mm) |
Weight (kg/m) |
Material | Length (m) | |||
| Head Width | Foot Width | Height | Thickness | ||||
| 15 KG | 41.28 | 76.2 | 76.2 | 7.54 | 14.905 | 700/900A | 9-25m |
| 22 KG | 50.01 | 95.25 | 95.25 | 9.92 | 22.542 | ||
| 30 KG | 57.15 | 109.54 | 109.54 | 11.5 | 30.25 | ||
| 40 KG | 63.5 | 127 | 127 | 14 | 40.31 | ||
| 48 KG | 68 | 127 | 150 | 14 | 47.6 | ||
| 57 KG | 71.2 | 140 | 165 | 16 | 57.4 | ||
Australian Standard Steel Rail
| AS 1085 Rails | |||||||
|---|---|---|---|---|---|---|---|
| Size | Dimension(mm) | Weight(kg/m) | Material | Length(m) | |||
| Head Width | Foot Width | Height | Thickness | ||||
| 31KG | 63.5 | 108 | 117.5 | 11.5 | 31.5 | 900A/1100 | 8-25 |
| 47KG | 70 | 127 | 141.3 | 14.3 | 46.5 | ||
| 50KG | 70 | 127 | 154 | 15 | 50.8 | ||
| 60KG | 70 | 146 | 170 | 16.5 | 61 | ||
| 68KG | 73.4 | 152 | 186 | 17.5 | 67.6 | ||
| 73KG | 70 | 146 | 157 | 32 | 73.63 | ||
| 86KG | 102 | 165 | 102 | 84.11 | 85.5 | ||
| 89KG | 102 | 178 | 114 | 51 | 89.81 | ||
JIS E 1103/1101 Standard Steel Rail
| Size | Dimension(mm) | Weight(kg/m) | Material | Length(m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | According to JIS e standard | 9-10m |
| JIS 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | ||
| JIS 30A | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | ||
| JIS 37A | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | ||
| JIS 50N | 65 | 127 | 153 | 15 | 50.4 | ||
| CR 73 | 100 | 140 | 135 | 32 | 73.3 | ||
| CR 100 | 120 | 155 | 150 | 39 | 100.2 | ||
Indian (ISCR) Standard Steel Rail
| Size | Dimension(mm) | Weight(kg/m) | Material | Length(m) | |||
|---|---|---|---|---|---|---|---|
| Head Width | Foot Width | Height | Thickness | ||||
| ISCR 50 | 51.2 | 90 | 90 | 20 | 29.8 | 55Q/U71mn | 9-12m |
| ISCR 60 | 61.3 | 105 | 105 | 24 | 40 | ||
| ISCR 70 | 70 | 120 | 120 | 28 | 52.8 | ||
| ISCR 80 | 81.7 | 130 | 130 | 32 | 64.2 | ||
| ISCR 100 | 101.9 | 150 | 150 | 38 | 89 | ||
| ISCR 120 | 122 | 170 | 170 | 44 | 118 | ||
Steel Rail Quality and Measures of Slow Down the Rail Fatigue
- After rolling, steel rail should be straight and cannot have significant bending and torsion. For the part bending and torsion of heavy rail and rectify the deformation, end of the rail tilt, etc., shall not exceed the standard rules.
- Steel surface should be clean and smooth and cannot have crack, scarring, scratches and other defects; Ending of face shall not be with marks of shrinkage cavity and intercalation, etc. Overall of light and heavy rail surface defects and its geometrical quantity levels shall not exceed the provisions of the standard.
- Measures of slow down the rail fatigue: Purifying the steel rail, control form of sundries; Adopting quenched rail, developing high quality heavy rail and improving steel rail mechanical properties; Reform the old rail system and make reasonable use of steel rail; Rail grinding, etc.
Steel Rolling Process and Quality Control
Raw material--Heating--High-pressure water dephosphorization--Primary rolling--High-pressure wind dephosphorization--Precision rolling--Saw cutting--Pre-bending--Air cooling—the test of chemical composition and mechanical properties--Vertical straighting--Ultrasonic detection--Drilling and milling—Heat treatment--Inspection and analysis—Labeling--Packing--Storage
Railway Sleeper
Railway sleeper is the fundamental, important and indispensable material for railway line. The railway sleeper plays an important role in fixing railway track gauge, bearing the weight from steel rail and passing vehicles, evenly dispersing the pressure of railway track so as to keeping the railway more stable and expedite. With the development of railway industry, railway sleeper can be divided into three types up to now: wooden sleeper, concrete sleeper, steel sleeper. The following are the basic parameter of our UIC865 Series Steel Sleeper and BS-500 Series Steel Sleeper.
| UIC865 Series Steel Sleepers | |||
|---|---|---|---|
| Size | Standard | Material | Length |
| UIC54 | UIC865 | TO CUSTOMER'S REQUIREMENTS | TO CUSTOMER'S REQUIREMENTS |
| UIC60 | |||
| BS-500 Series Steel Sleepers | |||
| BS75A | BS 500-2000 |
SAE1522 ST52.3 20MnK SS490 Q255A |
1830mm 1900mm 2000mm |
| BS75R | |||
| BS80A | |||
| BS90A | |||
| BS100A | |||
| BS113A | |||
Being a competitive railway components supplier, AGICO has exported steel rail and sleepers to many areas like Southeast Asia, Latin America, Australia, etc. We have reached long-term cooperation with these customers. AGICO is always expecting with your sincere cooperation.
