Railway Washer

Railway washer is used between fastenings and rail nuts, such as spikes and nuts, bolts and nuts, etc. Being a professional railway fasteners manufacturer, AGICO Rail already has 58 years of experience. We can produce all kinds of double coil spring washer, single coil spring washer, lock washer, flat washer and other nonstandard customized washer

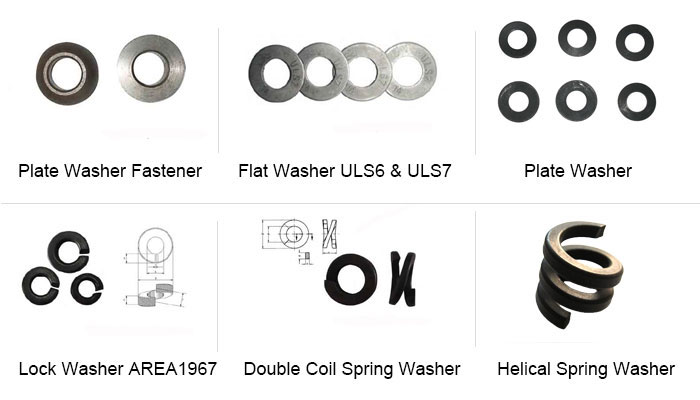

all kinds of railway washer

These washers can be supplied with different finish, such as bright, zinc plated and black. Besides, they can be made with different standards, such as ISO, DIN, ANSI, BS and special standard according to the drawings.

Functions of Railway Washer

  • Flat washer is usually used to protect the rail fasteners from being scratched by the rail nuts, and helps disperse pressures.
  • Lock washer is another railway washer, and its operation principle is so easy. It consists of two washers, which can prevent the rail bolt looseness better.

Types of Railway Washer

Type Dimension Weight (Kg/Mpcs)
Spring washer Fe6(UIC864-3) ¢ 25 90
Spring washer AREA67 7/8 90.55
Spring washer AREA67 1 152.33
Spring washer AREA67 1-1/8 187.65
Plain pattern washer 7/8 70.46
Plain pattern washer 1 78.03
Plain pattern washer 1-1/8 85.32
Flat washer ULS6 47/23/4 41
Flat washer ULS6 50/25/4 42

Plate Washer Fastener

Product Name Plate Washer
Material Q235;stainlesssteel,carbonsteel,copper,iron,etc
Finish Gray Phosphate,Zinc,Nickel plated,Black Oxide,etc

Helical Spring Washer

Product Name Helical Spring Washer
Type Available according to customer's drawings and samples
Material 65Mn, 60SizMn, 70#, ML08AL, 38Si7, 45#
Finish Plain (oil). Black. Zinc .hdg etc
Standard DIN, NF, AREA, etc
Size As requested
Weight According to the size
Certification ISO 9001:2008
Approved By TUV, BV, SGS, ABS, etc

Railway Washer Packing Method

rail washer packing method
